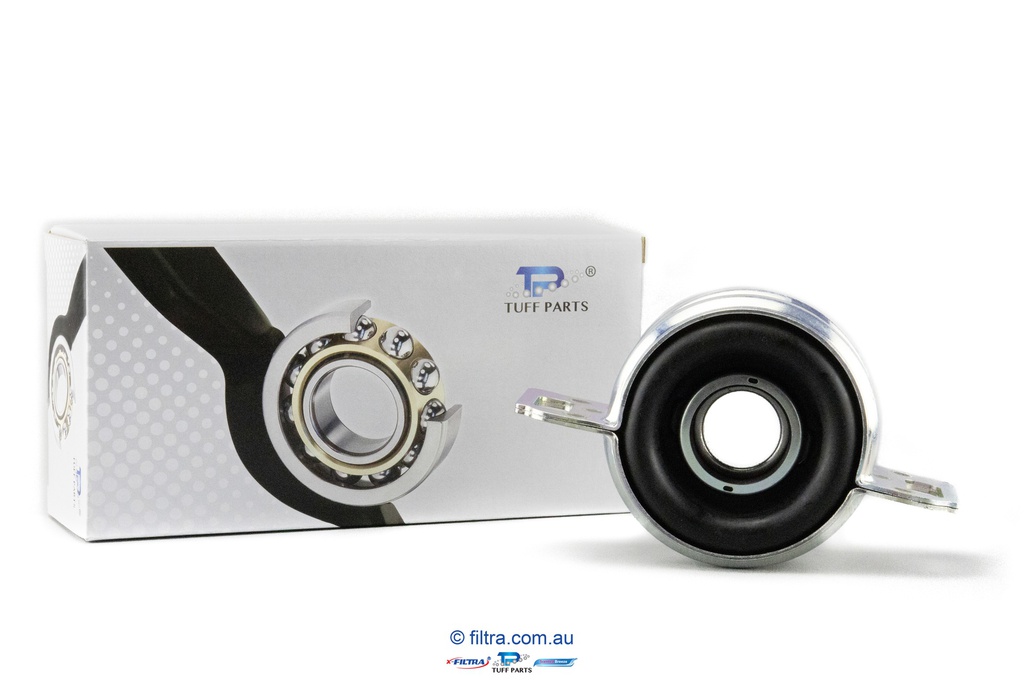

GTCB93

Category: Tail Shaft Centre Bearing
Barcode: 9348420055684
Interchangeable with: CB93/CB47/TH-30-5770

Toyota Hilux 4WD LN167/LN172/RZN169,174/KZN165/VZN172 1997-2005 Shaft D: 30mm Bracket: 149mm

Any contract of sale, order received or accepted will be subject to the Terms and Conditions of Sale
Shipping Cost will be confirmed before order accepted.
A late payment fee may apply if you pay invoice after the due date.

Manufacturer	Model	Series	Variant	Start Year	End Year
Toyota	Hilux	Platform/Chassis 3.0 D 4WD (LN167, LN172)	AWD Diesel 3.0L 4cyl 71kW 5L-E	1997	2000
Toyota	Hilux	N100 Ute 3.0 D 4WD (LN167, LN172)	AWD Diesel 3.0L 4cyl 71kW 5L-E	1998	2005
Toyota	Hilux	LN167,LN172 Ute 3.0 D 4WD	AWD Diesel 3.0L 4cyl 67kW 5L	2001	2005
Toyota	Hilux	N100 Ute 3.0 D 4WD (LN172, LN167)	AWD Diesel 3.0L 4cyl 67kW 5L	1997	2000

Specifications

Key Feature
Features	Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance Made up of materials that are fully recyclable

Key Feature

Features

Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant
Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability
Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life
Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance
Made up of materials that are fully recyclable

General
Brand	Tuff Parts
Classic Part	No
Part Number	GTCB93
Part Position	Front
Performance Part	No
Quantity in Carton	25
Quantity in Package	1
Service Interval (whichever comes first)	Not Applicable
Warranty	Yes

Product Dimensions
Item Bracket (mm)	149
Item Diameter (mm)	30
Item Height (mm)	60
Item Length (mm)	173
Item Width (mm)	105

Package Dimensions
Package Height (mm)	67
Package Length (mm)	240
Package Width (mm)	120

Interchangeable With
Mackay No.	CB93
OEM No.	37230-35130

Centre Bearings Specifications
Items Included	Hardware
Mounting Style	Bolt-On
