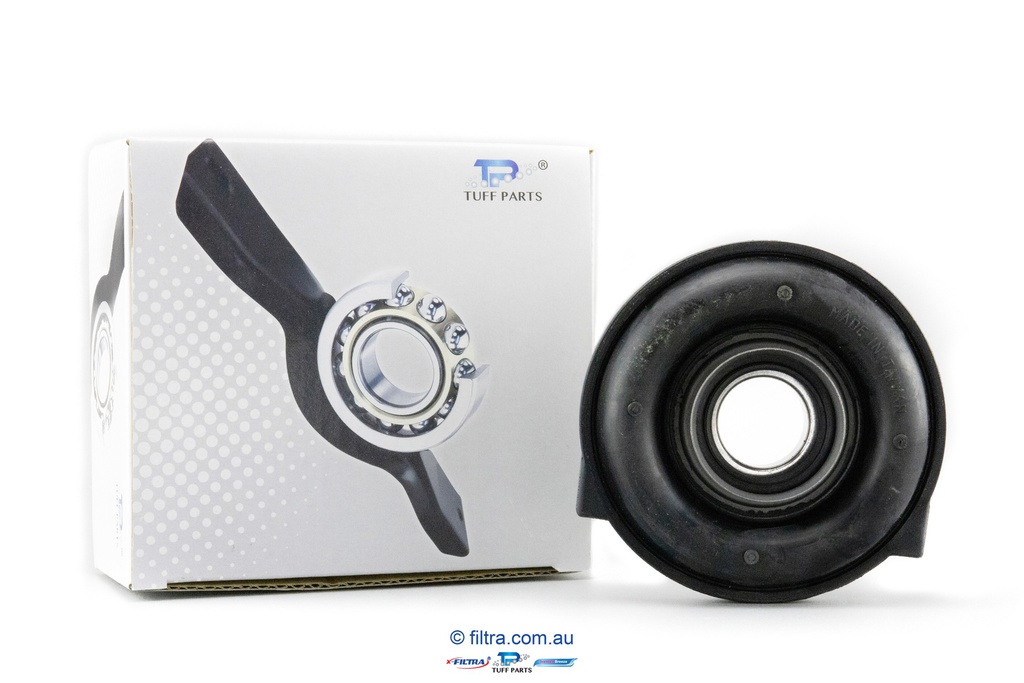

GTCB05

Category: Tail Shaft Centre Bearing
Barcode: 9348420055448
Interchangeable with: CB05

Nissan Navara D22 D21 4WD 4x4 Ute Pickup 1986-2010

Any contract of sale, order received or accepted will be subject to the Terms and Conditions of Sale
Shipping Cost will be confirmed before order accepted.
A late payment fee may apply if you pay invoice after the due date.

Manufacturer	Model	Series	Variant	Start Year	End Year
Nissan	Navara	D21 Ute 2.7 D 4WD	AWD Diesel 2.7L 4cyl 58kW TD27	1995	1995
Nissan	Navara	D22 Ute 3.0 TD 4WD	AWD Diesel 3.0L 4cyl 110kW ZD30	2008	2008
Nissan	Navara	D21 Platform/Chassis 2.7 D 4x4	AWD Diesel 2.7L 4cyl 58kW TD27	1995	1995
Nissan	Navara	D21 Platform/Chassis 2.7 D 4x4	AWD Diesel 2.7L 4cyl 62kW TD27	1995	1995
Nissan	Navara	D21 Ute 2.7 D 4x4	AWD Diesel 2.7L 4cyl 62kW	1995	1995
Nissan	Navara	D22 Platform/Chassis 2.5 Di 4WD	AWD Diesel 2.5L 4cyl 98kW YD25DDTi	2008	2008
Nissan	Navara	D22 Ute 2.5 dCi 4WD	AWD Diesel 2.5L 4cyl 98kW YD25DDTi	2008	2008
Nissan	Navara	D21 Platform/Chassis 2.4 i 4x4	AWD Petrol 2.4L 4cyl 93kW KA24E	1995	1995
Nissan	Navara	D21 Ute 2.4 i 12V 4WD	AWD Petrol 2.4L 4cyl 93kW KA24E	1995	1995

Specifications

Key Feature

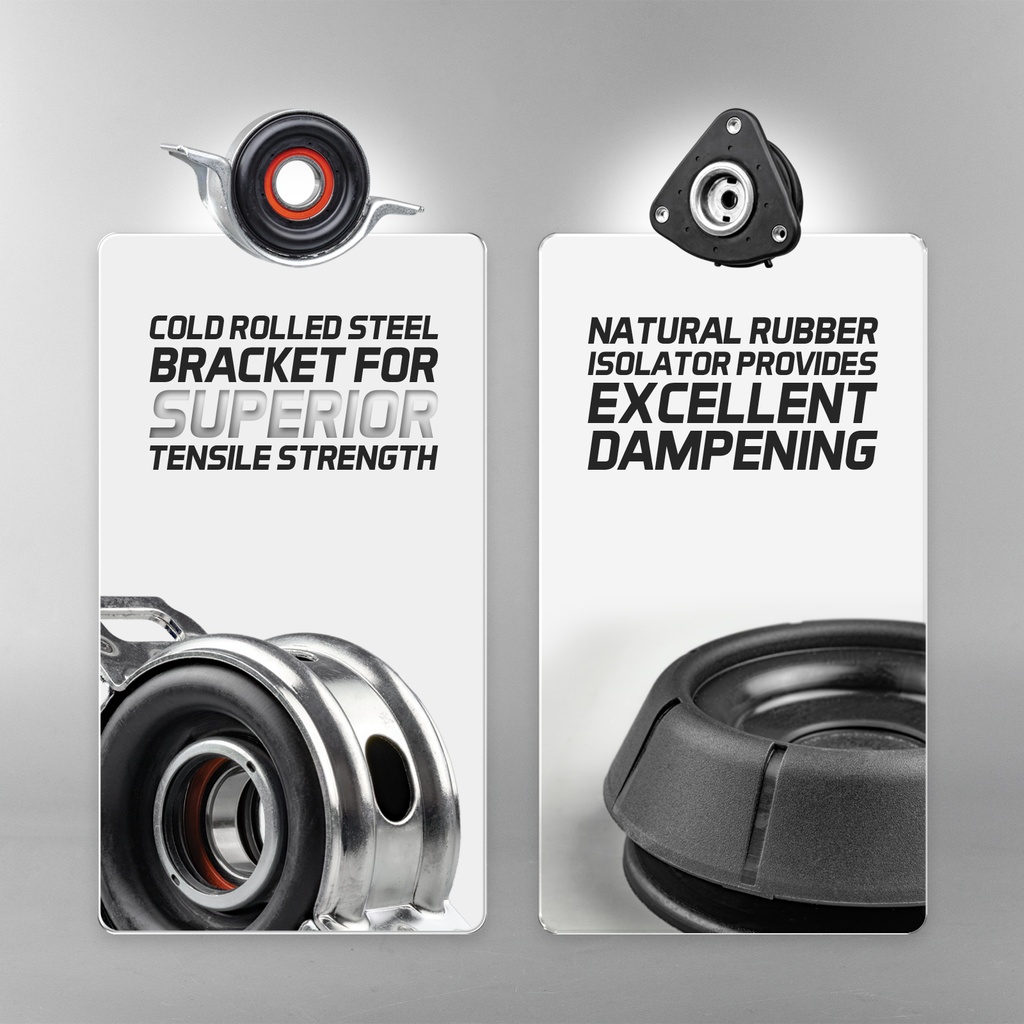

Features	Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance Made up of materials that are fully recyclable

Key Feature

Features

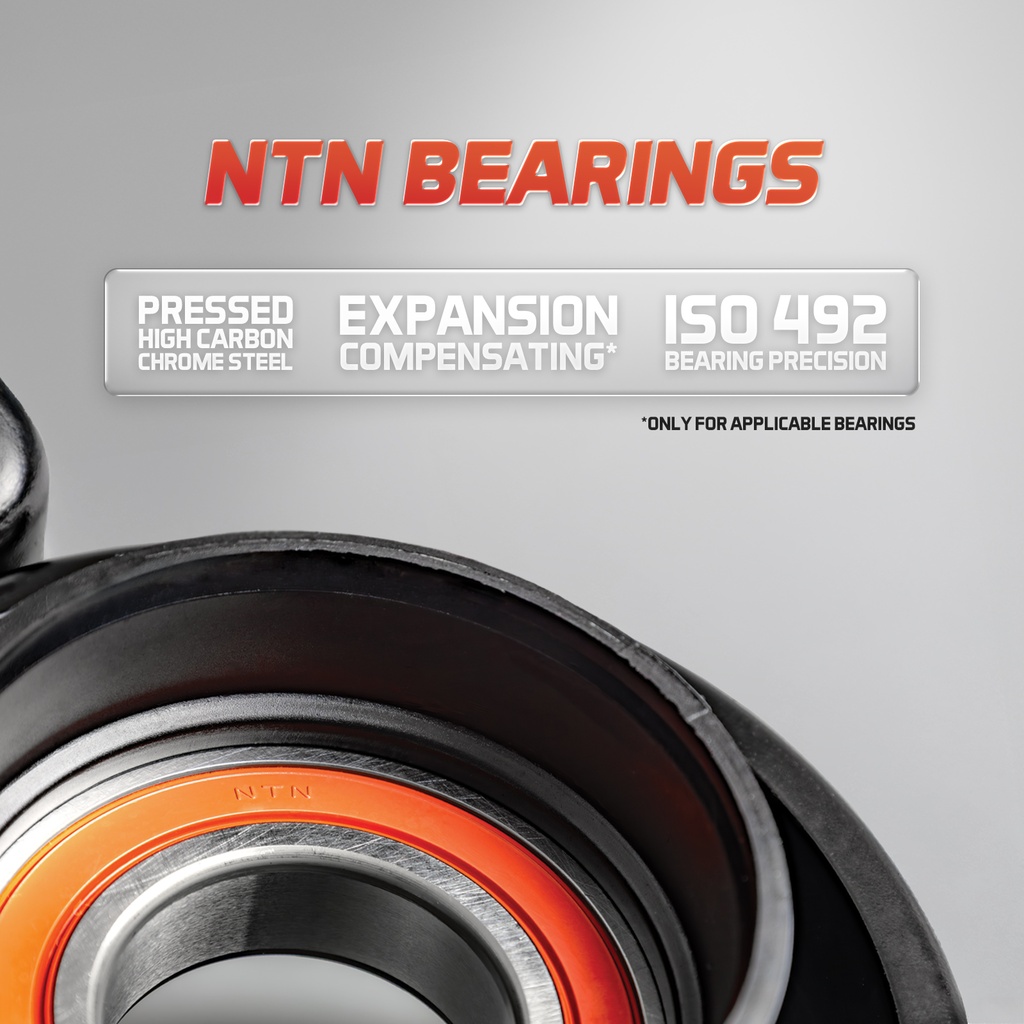

Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant
Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability
Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life
Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance
Made up of materials that are fully recyclable

General
Brand	Tuff Parts
Classic Part	No
Part Number	GTCB05
Part Position	Front
Performance Part	No
Quantity in Carton	20
Quantity in Package	1
Service Interval (whichever comes first)	Not Applicable
Warranty	Yes

Product Dimensions
Item Diameter (mm)	30
Item Height (mm)	130
Item Length (mm)	130
Item Width (mm)	45

Package Dimensions
Package Height (mm)	135
Package Length (mm)	135
Package Width (mm)	75

Interchangeable With
Mackay No.	CB05
OEM No.	37521-56G25

Centre Bearings Specifications
Items Included	Nut
Mounting Style	Hardwired
