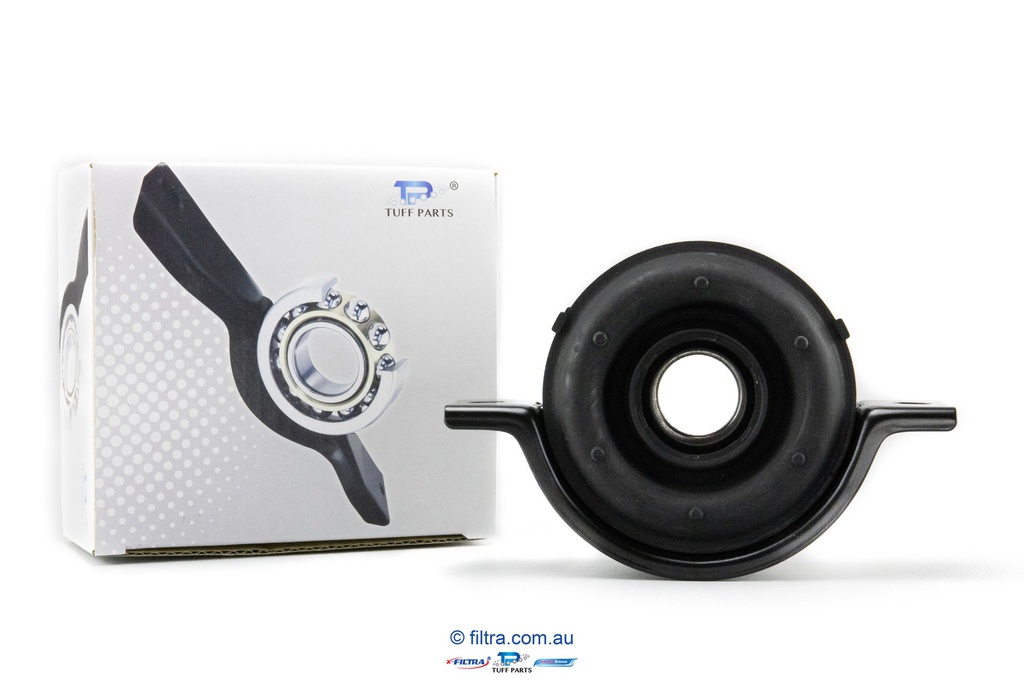

GTCB46

Category: Tail Shaft Centre Bearing
Barcode: 9348420055592
Interchangeable with: CB46

Mitsubishi Triton ML;MN;2007-2015 Shaft D:30mm; Bracket: 160mm

Any contract of sale, order received or accepted will be subject to the Terms and Conditions of Sale
Shipping Cost will be confirmed before order accepted.
A late payment fee may apply if you pay invoice after the due date.

Manufacturer	Model	Series	Variant	Start Year	End Year
Mitsubishi	Triton	ML,MN Ute 2.4 (KA5T)	RWD Petrol 2.4L 4cyl 94kW 4G64 (16V)	2005	2015
Mitsubishi	Triton	ML,MN Platform/Chassis 2.4 (KA5T)	RWD Petrol 2.4L 4cyl 94kW 4G64 (16V)	2010	2015
Mitsubishi	Triton	ML,MN Platform/Chassis 3.2 DI-D 4WD (KB8T)	AWD Diesel 3.2L 4cyl 118kW 4M41	2007	2007
Mitsubishi	Triton	ML,MN Platform/Chassis 2.5 DI-D (KA4T)	RWD Diesel 2.5L 4cyl 133kW 4D56-HP	2012	2015
Mitsubishi	Triton	ML,MN Platform/Chassis 2.5 DI-D (KA4T)	RWD Diesel 2.5L 4cyl 100kW 4D56-HP,4D56 (16V)	2008	2015
Mitsubishi	Triton	ML,MN Platform/Chassis 3.5 i 4WD (KB9T)	AWD Petrol 3.5L 6cyl 135kW 6G74 (SOHC 24V)	2006	2009
Mitsubishi	Triton	ML,MN Ute 2.5 DI-D 4WD (KB4T)	AWD Diesel 2.5L 4cyl 131kW 4D56-HP	2009	2009
Mitsubishi	Triton	ML,MN Ute 3.5 (KA9T)	RWD Petrol 3.5L 6cyl 135kW 6G74 (SOHC 24V)	2006	2008
Mitsubishi	Triton	ML,MN Platform/Chassis 3.5 (KA9T)	RWD Petrol 3.5L 6cyl 135kW 6G74 (SOHC 24V)	2007	2008

Specifications

Key Feature
Features	Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance Made up of materials that are fully recyclable

Key Feature

Features

Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant
Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability
Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life
Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance
Made up of materials that are fully recyclable

General
Brand	Tuff Parts
Classic Part	No
Part Number	GTCB46
Part Position	Front
Performance Part	No
Quantity in Carton	25
Quantity in Package	1
Service Interval (whichever comes first)	Not Applicable
Warranty	Yes

Product Dimensions
Item Diameter (mm)	30
Item Height (mm)	125
Item Length (mm)	188
Item Width (mm)	56

Package Dimensions
Package Height (mm)	165
Package Length (mm)	150
Package Width (mm)	70

Interchangeable With
Mackay No.	CB46
OEM No.	MR580647

Centre Bearings Specifications
Items Included	Hardware
Mounting Style	Bolt-On
