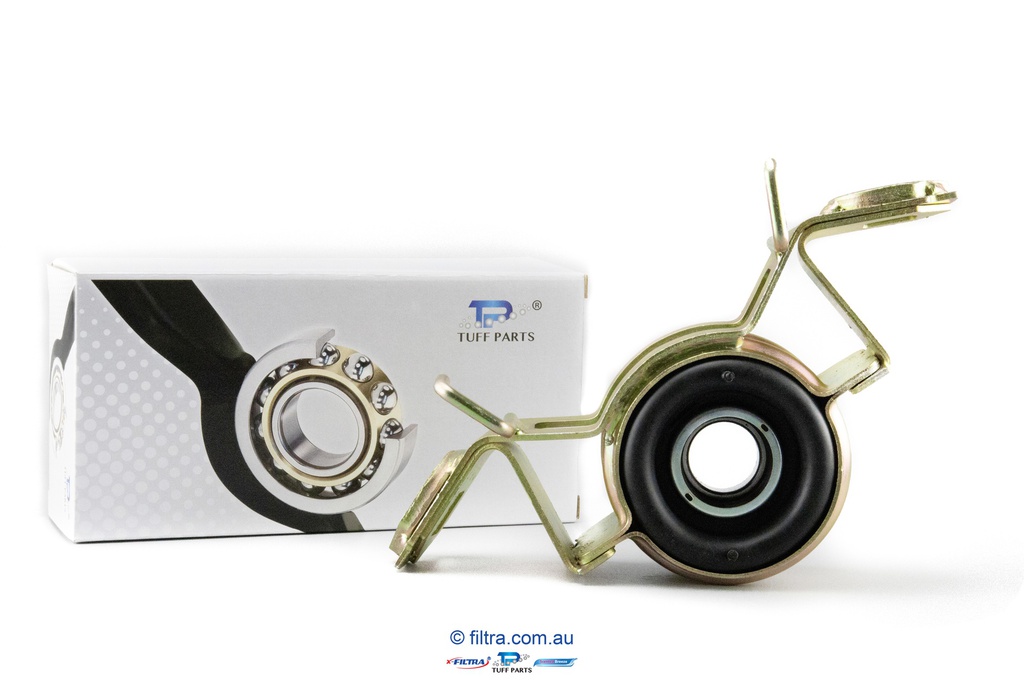

GTCB9

Category: Tail Shaft Centre Bearing
Barcode: 9348420055622
Interchangeable with: CB09/TH-30-4810

Toyota Hilux LN105/LN106/LN107 1988-1999; GRN21/KZN21/UZN21 2002-2009; TOYOTA 4-RUNNER 1985-1989; Shaft D: 30mm Bracket: 240mm

Any contract of sale, order received or accepted will be subject to the Terms and Conditions of Sale
Shipping Cost will be confirmed before order accepted.
A late payment fee may apply if you pay invoice after the due date.

Manufacturer	Model	Series	Variant	Start Year	End Year
Toyota	Hilux	RN105,RN110 Platform/Chassis 2.4 4WD	AWD Petrol 2.4L 4cyl 75kW 22R	1988	1997
Toyota	Hilux	Ute 2.8 D 4WD (LN107, LN111, LN166, LN106)	AWD Diesel 2.8L 4cyl 60kW 3L	1988	1988
Toyota	Hilux	N50,N60 Ute 2.2 4WD (YN67)	AWD Petrol 2.2L 4cyl 69kW 4Y	1985	1988
Toyota	Hilux	N50,N60 Ute 2.4 D (LN51, LN60, LN56)	RWD Diesel 2.4L 4cyl 56kW 2L	1984	1988
Toyota	Hilux	Platform/Chassis 2.8 D 4WD (LN106, LN111)	AWD Diesel 2.8L 4cyl 60kW 3L	1988	1988

Specifications

Key Feature
Features	Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance Made up of materials that are fully recyclable

Key Feature

Features

Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant
Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability
Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life
Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance
Made up of materials that are fully recyclable

General
Brand	Tuff Parts
Classic Part	No
Part Number	GTCB9
Part Position	Front
Performance Part	No
Quantity in Carton	18
Quantity in Package	1
Service Interval (whichever comes first)	Not Applicable
Warranty	Yes

Product Dimensions
Item Bracket (mm)	240
Item Diameter (mm)	30
Item Height (mm)	285
Item Length (mm)	150
Item Width (mm)	70

Package Dimensions
Package Height (mm)	285
Package Length (mm)	145
Package Width (mm)	148

Interchangeable With
Mackay No.	CB9
OEM No.	37230-35080

Centre Bearings Specifications
Items Included	Hardware
Mounting Style	Bolt-On
