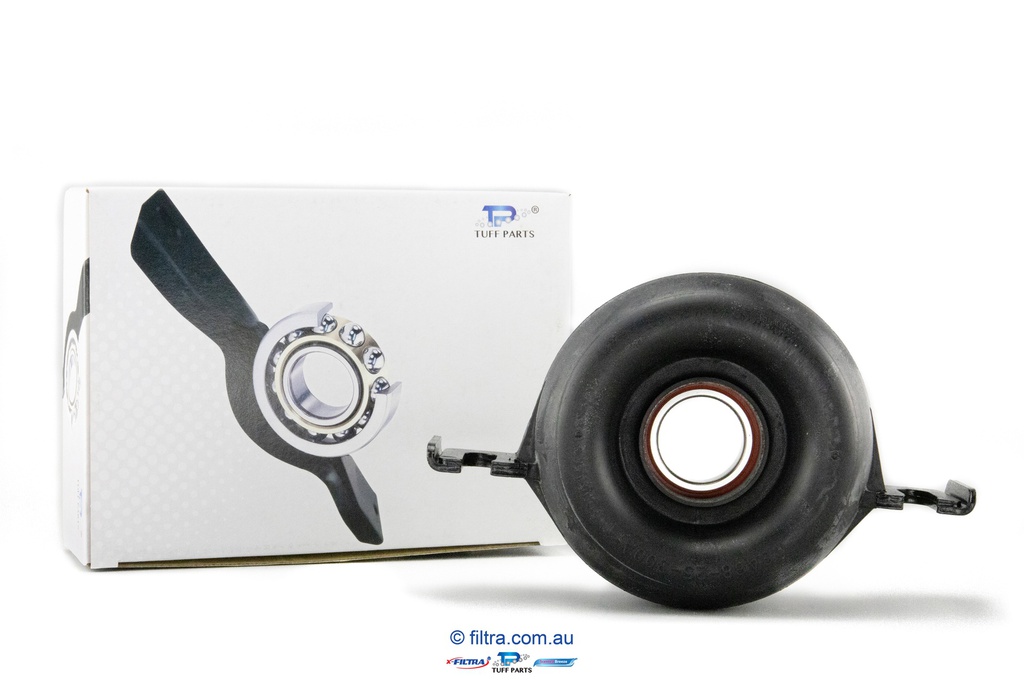

GTCB925

Category: Tail Shaft Centre Bearing
Barcode: 9348420055653
Interchangeable with: CB925/FD-30-7040

Ford Ranger PJ/PK Series 4X4 2x4 WEAT 3.0L Diesel 2006-2011 Shaft D: 35mm, Bracket: 180MM

Any contract of sale, order received or accepted will be subject to the Terms and Conditions of Sale
Shipping Cost will be confirmed before order accepted.
A late payment fee may apply if you pay invoice after the due date.

Manufacturer	Model	Series	Variant	Start Year	End Year
Ford	Ranger	PJ Platform/Chassis 3.0 TDdi 4x4	AWD Diesel 3.0L 4cyl 115kW WEAT	2006	2009
Ford	Ranger	PK Platform/Chassis 3.0 TDdi 4x4	AWD Diesel 3.0L 4cyl 115kW WEAT	2009	2011
Ford	Ranger	PK Platform/Chassis 2.5 TDdi 4x4	AWD Diesel 2.5L 4cyl 105kW WLAT (16 V)	2009	2011

Specifications

Key Feature
Features	Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance Made up of materials that are fully recyclable

Key Feature

Features

Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant
Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability
Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life
Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance
Made up of materials that are fully recyclable

General
Brand	Tuff Parts
Classic Part	No
Part Number	GTCB925
Part Position	Front
Performance Part	No
Quantity in Carton	15
Quantity in Package	1
Service Interval (whichever comes first)	Not Applicable
Warranty	Yes

Product Dimensions
Item Bracket (mm)	180
Item Diameter (mm)	35
Item Height (mm)	55
Item Length (mm)	203
Item Width (mm)	135

Package Dimensions
Package Height (mm)	75
Package Length (mm)	205
Package Width (mm)	160

Interchangeable With
Mackay No.	CB925
OEM No.	SA68-25-300A

Centre Bearings Specifications
Items Included	Hardware
Mounting Style	Bolt-On
