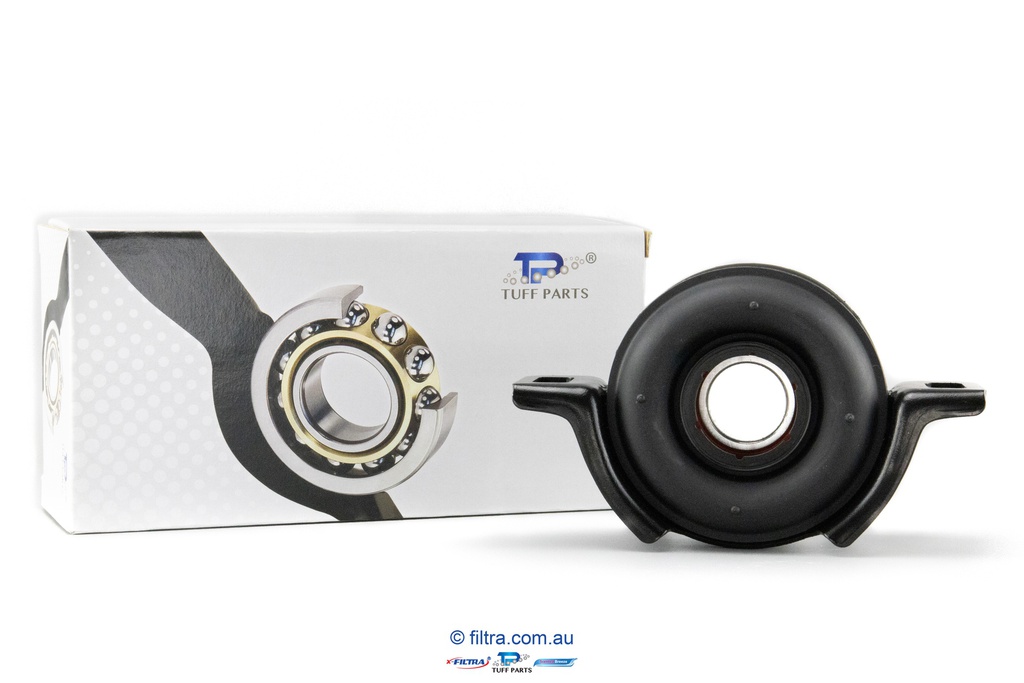

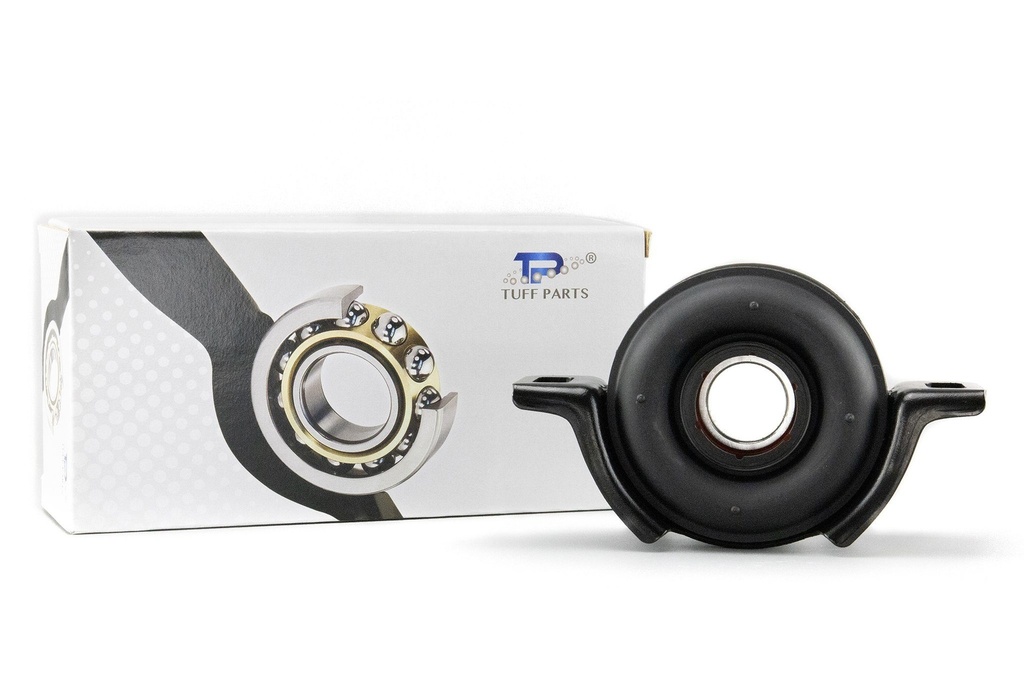

GTCB94

Category: Tail Shaft Centre Bearing
Barcode: 9348420055707
Interchangeable with: CB94/ CB152/ CB151/TH-30-6810

TAILSHAFT CENTER BEARING for TOYOTA Hilux KUN26 KUN16 GGN15 GGN25 TGN16 GGN25 /VIGO 2005/2014 Shaft D: 30mm Bracket: 152 mm

Any contract of sale, order received or accepted will be subject to the Terms and Conditions of Sale
Shipping Cost will be confirmed before order accepted.
A late payment fee may apply if you pay invoice after the due date.

Manufacturer	Model	Series	Variant	Start Year	End Year
Toyota	Hilux	Platform/Chassis 4.0 V6 VVTi (GGN15R)	RWD Petrol 4.0L 6cyl 175kW 1GR-FE	2005	2015
Toyota	Hilux	Platform/Chassis 4.0 V6 VVTi 4WD (GGN25R)	AWD Petrol 4.0L 6cyl 175kW 1GR-FE	2005	2015
Toyota	Hilux	Ute 4.0 V6 VVTi (GGN15)	RWD Petrol 4.0L 6cyl 175kW 1GR-FE	2005	2015
Toyota	Hilux	Ute 4.0 V6 VVTi 4WD (GGN25)	AWD Petrol 4.0L 6cyl 175kW 1GR-FE	2005	2015
Toyota	Hilux	GGN15 Ute 4.0	RWD Petrol 4.0L 6cyl 175kW 1GR-FE	2019	2019
Toyota	Hilux	GGN25 Ute 4.0 4WD	AWD Petrol 4.0L 6cyl 175kW 1GR-FE	2019	2019

Specifications

Key Feature
Features	Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance Made up of materials that are fully recyclable

Key Feature

Features

Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant
Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability
Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life
Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance
Made up of materials that are fully recyclable

General
Brand	Tuff Parts
Classic Part	No
Part Number	GTCB94
Part Position	Front
Performance Part	No
Quantity in Carton	20
Quantity in Package	1
Service Interval (whichever comes first)	Not Applicable
Warranty	Yes

Product Dimensions
Item Bracket (mm)	152
Item Diameter (mm)	30
Item Height (mm)	56
Item Length (mm)	179
Item Width (mm)	110

Package Dimensions
Package Height (mm)	70
Package Length (mm)	240
Package Width (mm)	120

Interchangeable With
Mackay No.	CB94
OEM No.	37230-0K020

Centre Bearings Specifications
Items Included	Hardware
Mounting Style	Bolt-On
