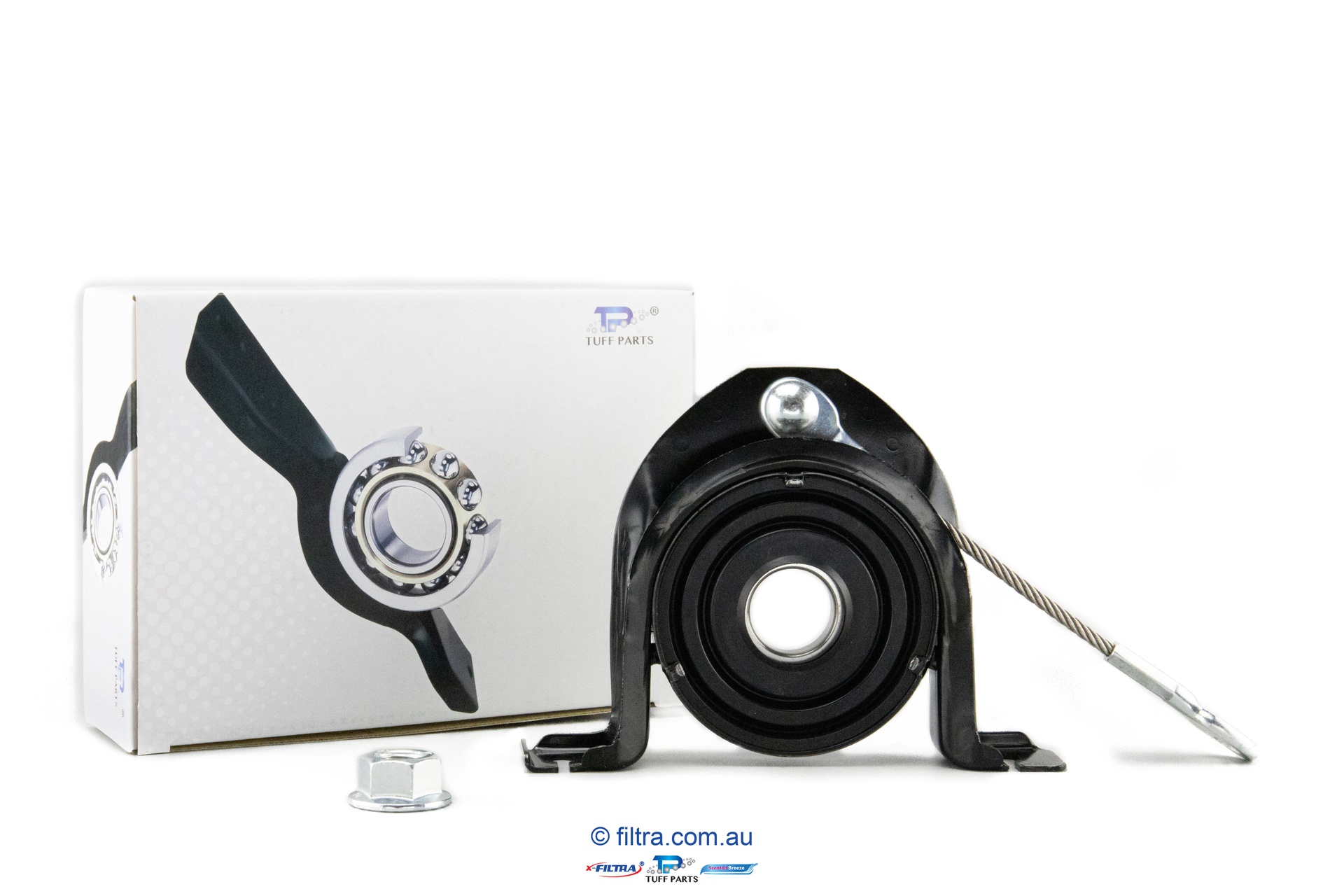

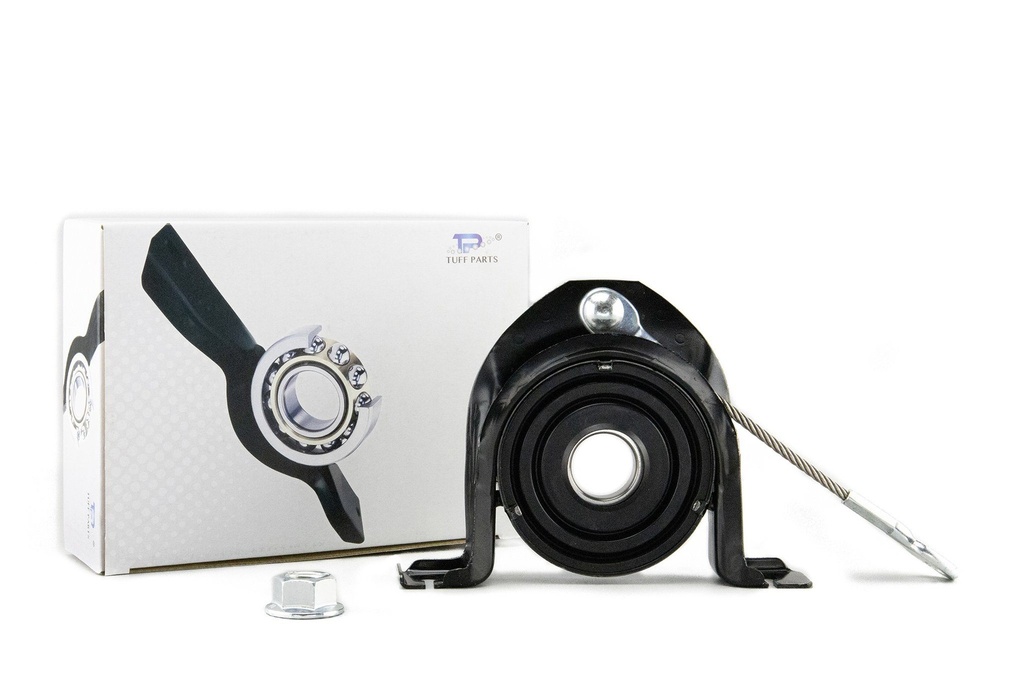

GTCB953

Category: Tail Shaft Centre Bearing
Barcode: 9348420055356
Interchangeable with: CB953/FD-30-5880/CB181

OEM:SY4800A FORD Territory SX, SY + MK2 2004 onwards CENTRE BEARING ASSEMBLY Centre Height: 55mm Bolt Hole Centre: 158mm Bearing ID: 30mm

Any contract of sale, order received or accepted will be subject to the Terms and Conditions of Sale
Shipping Cost will be confirmed before order accepted.
A late payment fee may apply if you pay invoice after the due date.

Manufacturer	Model	Series	Variant	Start Year	End Year
Ford	Territory	SX,SY SUV 4.0	RWD Petrol 4.0L 6cyl 182kW BARRA 182	2004	2006
Ford	Territory	SX,SY SUV 4.0	RWD Petrol 4.0L 6cyl 190kW BARRA 190	2005	2011
Ford	Territory	SX,SY SUV 4.0 AWD	AWD Petrol 4.0L 6cyl 182kW BARRA 182	2004	2005
Ford	Territory	SX,SY SUV 4.0 AWD	AWD Petrol 4.0L 6cyl 190kW BARRA 190	2004	2011
Ford	Territory	SZ SUV 4.0 i	RWD Petrol 4.0L 6cyl 195kW JGAT5R	2011	2012

Specifications

Key Feature
Features	Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance Made up of materials that are fully recyclable

Key Feature

Features

Highest-quality, OEM standard Japanese NTN and Taiwanese bearings with superior rubber components and cold-rolled steel plates, offer more strength, abrasion resistance, vibration dampening, and oil resistant
Undergoes a digital quality control process to ensure standard consistency during assembly, and each product’s performance is tested in that process to guarantee exceptional performance and reliability
Designed to stabilise your vehicle, secure its driveshaft and minimise vibrations while accelerating, also pre-greased and pre-sealed with special bearing grease in the seal cover to extend the usage life
Widely recognised by mechanics, specific to match OEM-standard ensure your safety and optimum vehicle performance
Made up of materials that are fully recyclable

General
Brand	Tuff Parts
Classic Part	No
Part Number	GTCB953
Part Position	Front
Performance Part	No
Quantity in Carton	20
Quantity in Package	1
Service Interval (whichever comes first)	Not Applicable
Warranty	Yes

Product Dimensions
Item Bracket (mm)	158
Item Diameter (mm)	30
Item Height (mm)	37
Item Length (mm)	190
Item Width (mm)	142

Package Dimensions
Package Height (mm)	60
Package Length (mm)	220
Package Width (mm)	164

Interchangeable With
Mackay No.	CB953
OEM No.	FD-30-5880

Centre Bearings Specifications
Items Included	Nut
Mounting Style	Hardwired
