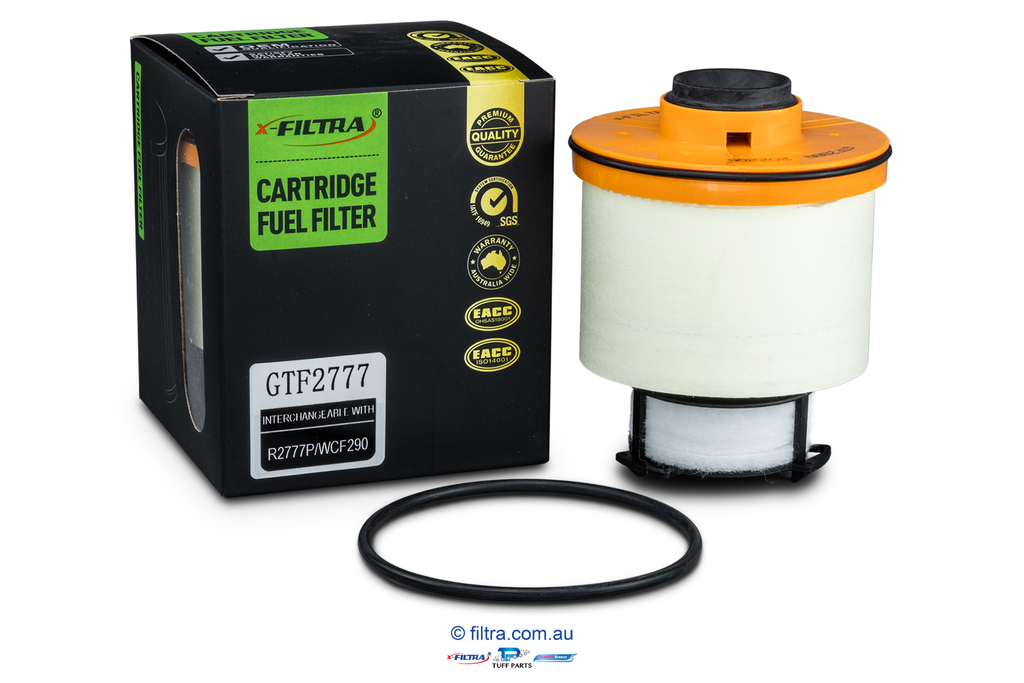

GTF2777

Category: Filters / Fuel Filters
Barcode: 9348420030230
Interchangeable with: R2777P/WCF290

Fuel Filter for Toyota Hilux GUN 122R/123R/125R/136R; TGN121R;GGN120R/ Fortuner GUN156R TURBO 2015/ON

    This combination does not exist.

    Any contract of sale, order received or accepted will be subject to the Terms and Conditions of Sale
    Shipping Cost will be confirmed before order accepted.
    A late payment fee may apply if you pay invoice after the due date.

    Manufacturer Model Series Variant Start Year End Year
    Toyota Hilux Ute 2.8 D-4D (GUN136) RWD Diesel 2.8L 4cyl 130kW 1GD-FTV 2015 2020
    Toyota Hilux GUN126 Ute 2.8 D 4WD AWD Diesel 2.8L 4cyl 130kW 1GD-FTV 2021 2021
    Toyota Hilux Platform/Chassis 2.8 D-4D 4WD (GUN126R) AWD Diesel 2.8L 4cyl 130kW 1GD-FTV 2015 2020
    Toyota Hilux Ute 2.4 TDi (GUN112, GUN122, GUN135, GUN120) RWD Diesel 2.4L 4cyl 110kW 2GD-FTV 2015 2022
    Toyota Hilux Ute 2.8 D-4D 4WD (GUN126R) AWD Diesel 2.8L 4cyl 130kW 1GD-FTV 2015 2020
    Toyota Hilux GUN136 Ute 2.8 D RWD Diesel 2.8L 4cyl 130kW 1GD-FTV 2021 2021
    Toyota Hilux Platform/Chassis 2.4 TDi (GUN112, GUN122, GUN135) RWD Diesel 2.4L 4cyl 110kW 2GD-FTV 2015 2022
    Toyota Hilux Platform/Chassis 2.4 TDi 4WD (GUN125R) AWD Diesel 2.4L 4cyl 110kW 2GD-FTV 2015 2022
    Toyota Hilux Ute 2.8 D-4D (GUN123) RWD Diesel 2.8L 4cyl 125kW 1GD-FTV 2015 2017
    Toyota Hilux GUN126 Platform/Chassis 2.8 D 4WD AWD Diesel 2.8L 4cyl 130kW 1GD-FTV 2021 2021
    Toyota Hilux Ute 2.4 TDi 4WD (GUN125R) AWD Diesel 2.4L 4cyl 110kW 2GD-FTV 2015 2022
    Toyota Hilux GUN123 Ute 2.8 D RWD Diesel 2.8L 4cyl 125kW 1GD-FTV 2018 2021
    Toyota HiAce H300 Van 2.8 (GDH300, GDH320) RWD Diesel 2.8L 4cyl 130kW 1GD-FTV 2019 2024
    Toyota HiAce H300 Bus 2.8 (GDH322) RWD Diesel 2.8L 4cyl 120kW 1GD-FTV 2019 2024
    Toyota Fortuner GUN156 SUV 2.8 D 4x4 AWD Diesel 2.8L 4cyl 130kW 1GD-FTV 2021 2022
    Toyota Fortuner N150,N160 SUV 2.8 D 4x4 (GUN156) AWD Diesel 2.8L 4cyl 130kW 1GD-FTV 2015 2020
    Toyota Granvia H300 MPV 2.8 (GDH303) RWD Diesel 2.8L 4cyl 130kW 1GD-FTV 2019 2024

    Specifications

    Key Feature
    Features
    • Constructed with high-quality Aoslong and HV paper as the filtration media, and superior rubber components (NBR, AEM, FKM) for high performance and long usage life
    • Utilise advanced machinery and manufacturing techniques, and placed through rigorous quality-control tests
    • Provides high filtration accuracy and is equipped with a series of patented technology
    • Precision made to meet the OEM specifications and tested on Australian roads to meet your new car warranty requirements
    • Eco-Friendly product and can be completely incinerated to minimise environmental impact
    General
    Brand X-Filtra
    Classic Part No
    Part Number GTF2777
    Part Position Front
    Performance Part No
    Quantity in Carton 50
    Quantity in Package 1
    Service Interval (whichever comes first) 20000KM or 12 Month
    Warranty Yes
    Product Dimensions
    Item Diameter (mm) Not Applicable
    Item Height (mm) 85
    Item Length (mm) 110
    Item Width (mm) 85
    Package Dimensions
    Package Height (mm) 95
    Package Length (mm) 110
    Package Width (mm) 95
    Interchangeable With
    MANN No. Not Applicable
    OEM No. 23390-0L070
    Ryco No. R2777P
    Sakura No. F-11140
    Wesfil No. WCF290NM
    Filter Specifications
    Filter Type Cartridge
    Items Included Seal
    Material Paper
    Mounting Style Clip-On
